Optical Design
The S6 10-60×56 ED FT sets a new optical standard for Airgun and .22 competition shooting. The design employs two Extra-Low Dispersion (ED) glass elements for an unprecedented shooting experience that provides a 55% improvement* in optical resolution over our award winning and industry standard SIII 10-50×60 FT models. Now you can see those shots on target like never before.
* when compared to the award winning Sightron S3 10-50×60 FT Riflescope
Parallax Cam System with DCEC
SIGHTRON redesigned the parallax cam system with 330º of total rotation with full correction from 9 meters to infinity. It is optimized for precise Field Target parallax adjustments with 91º of parallax correction in the critical 40-60 meter target range. We added additional space in the rotation to compensate for Diopter Correction and Environmental Changes (DCEC) which significantly effects target ranging accuracy.
Magnetic Parallax Correction Wheel
Sightron collaborated with Garima Design & Customization in Italy to develop a 145mm diameter magnetic side-wheel for marking your target distances via parallax. The magnetic connection allows the wheel to attach or detach in less than 1 second without tools. Great for transporting your gun and when you need to make a quick adjustments to your rifle on the line.

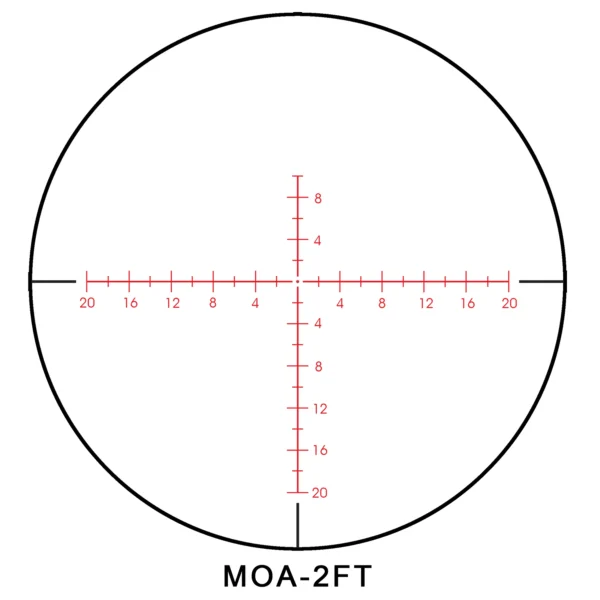

Reticle Design
The new MOA-2FT reticle is purpose built for Airgun and 22. caliber Competition Field Target and Benchrest shooters. The 2nd focal plane illuminated reticle is uncluttered with just enough information to keep track of where you are when counting clicks. The floating center dot makes it easy to set target placement even at 60x.
Multicoating Technology
SIGHTRON’s exclusive Zact-7 Revcoat Plus multi-coating technology applies premium camera grade multi-coatings throughout the optical design for the best possible light transmission, contrast, and clarity for dramatically reduced color fringing, flare, and chromatic aberrations even in the harshest lighting conditions.
ExacTrack Accuracy
Never experience reticle drift again. SIGHTRON utilizes their exclusive ExacTrack erector tube system to deliver consistent, reliable, and repeatable adjustments even at the extreme edges of the scope’s adjustments. This means 1/20 MIL click values are the same at 8 MIL up as they are at zero. The scope utilizes a highly accurate “boxed” reticle design with 16 MILs of elevation and 11.7 MILs of windage adjustmentsin 1/20 MIL (0.05) increments.
Scope Construction
The 34mm tube design is crafted from premium-grade aluminum, weighs 33.6 oz and is Airgun tested and shock-rated to 1,000G’s for more than 10k cycles. It can handle the heaviest big-bore Airguns to 50BMG. Of course, it meets IPX7 waterproof standards, is nitrogen charged to prevent fogging of the interior glass elements even when moving from a warm car to sub-zero temps.
Lifetime Performance Guarantee
SIGHTRON’s Lifetime Performance Guarantee is backed by a team of skilled technicians in their Custom Shop. If you ever have an issue, they will get your scope working as it should or they will replace it CLICK Here For Warranty Details.
In the Box:
- S6 10-60×56 ED FT w/ MH-FT Reticle
- Garima Magnetic Parallax Correction Wheel
- Sunshade
- Front and Rear Flip-up lens covers
- Lens Cloth
- (2) Allen Wrenches
Magnification | 10-60x |
Objective Lens Diameter | 56mm |
Eye Relief | 3.96 – 3.43 inch / 100.7 – 87.1mm |
Field of View | 10.96 ft – 1.9 ft @ 100 yards |
Tube Size | 34mm |
Turret Style | Tactical + Cover for Windage |
Zero Stop | Yes |
Click Value | 1/20 MIL |
Minutes Per Revolution | 5 MIL |
Max Elevation Adjustment | 16 MIL |
Max Windage Adjustment | 11.7 MIL |
Parallax Setting | 9 meters – Infinity + DCEC |
Focus Type | Adjustable Side Focus |
Reticle Type | MH-FT |
Focal Plane | Second Focal Plane |
Illumination | Yes – 11 Intensity Levels |
Finish / Color | Satin Black |
Waterproof | Yes – IPX7 Rated |
Anti-Reflection Tech | Zact-7 Revcoat Plus Multicoatings |
Shockproof | 1,000G Shock Rating |
Fog Proof | Yes |
Length | 16.7 inches |
Weight | 33.6 ounces |
Sunshade | Included |
Item Number | 66007 |
UPC Code | 793139660077 |
Model Name | S6 10-60×56 ED FT MH-FT Wheel Bundle |
Country of Origin | Japan |
Instruction Sheet (PDF) | Not Available |
Reticle Instructions (PDF) | DOWNLOAD |
