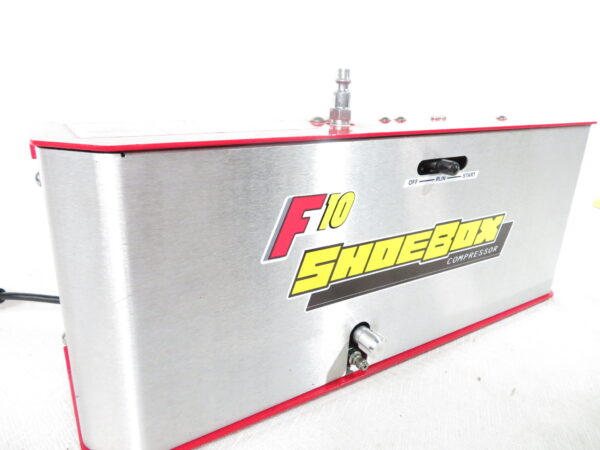

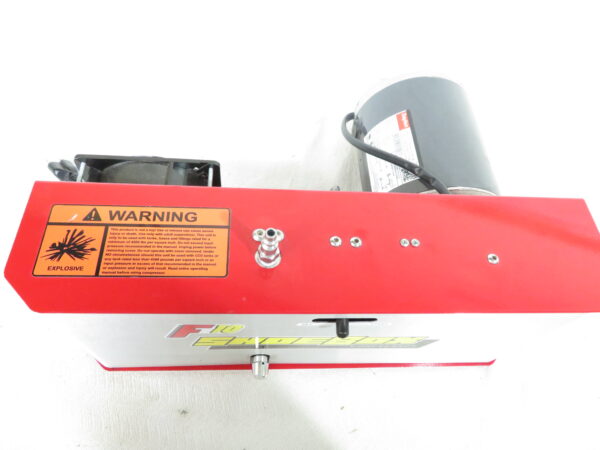

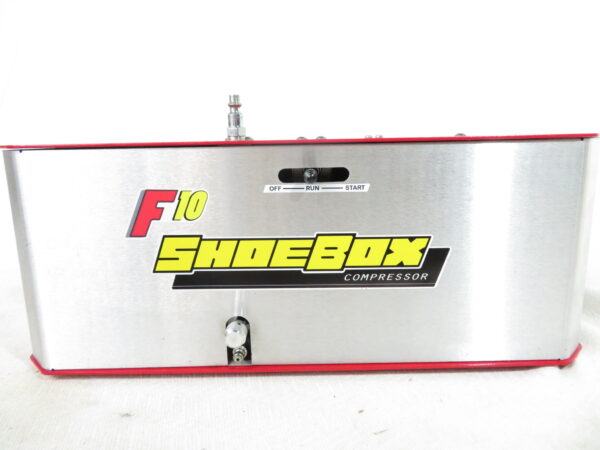

Shoebox Air Compressor F10

This requires a shop compressor. The Freedom F10 ShoeBox compressor is actually an air booster. You need to hook up the shop compressor to the Freedom F10 ShoeBox and put 100-125 psi air into the ShoeBox. This joint effort delivers faster fill times.

This compressed air should not be used for breathing!

This one is used, in excellent condition.

• Freedom F10 Shoebox electric air compressor
• 4500 PSI max working pressure
• Uses 110V electrical outlet
• Fill gun air reservoirs, scuba tanks, scba tanks or carbon fiber tanks
• 10 cubic feet per hour output
• Larger pulley fills unit faster
• “Stove pipe” particle trap at input
• Upgraded fan – 20 cfm -> 100 cfm
• Tapered cylinders for easier installation of c-clips
• 125 psi input pressure reduces fill time
• No more “curly” airlines
• Hardened and polished pistons for longer o-ring life
• Larger diameter cylinders cool effectively due to 2011 aluminum with high copper content, cooling fins and high-pressure coolant
• Higher RPM gearing for quicker fill times
• Improved Gates Belt is made in USA and less likely to break from wear
• Belt drive delivers quieter operation
• Machined dual rod alignment post for easy maintenance
• 4 ft of air tube coils for superior heat dissipation
• O-ring fittings prevent worn ferrules
• Crankshaft flats prevent slipping gears
• Extended high-pressure output fitting
• Delrin nuts on cylinder ends
• Fully adjustable shut off, from 100 psi to 4500 psi
• Electronic switch with more precise shut-off
• Switch allows for variable input pressure up to 125 psi
• Relief cut in internal spacers for better heat dissipation
• Factory-installed AutoLube system
• 90-day warranty
• Includes various o-rings and detailed owner’s manual

Approximate fill times:

• Benjamin Marauder air rifle: 0-3000 psi=7.2 mins
• 80 cu-ft scuba tank: 2000-3000 psi=4 hrs; 0-3000 psi=10 hrs
• 44 cu-ft scba tank: 3000-4500 psi=1.75 hrs; 0-3000 psi=4.5 hrs; 0-4500 psi=5.2 hrs
• 68 cu-in paintball tank: 3000-4500 psi=35 mins; 0-4500 psi=1.5 hrs
• 88 cu-ft Air Venturi carbon fiber tank: 0-4500 psi=9 hrs
• 72 cu-in Benjamin tank: 0-3000 psi=1 hr
• 90 cu-in Benjamin or Air Venturi carbon fiber tank: 0-4500 psi=2 hrs
• 490cc AirForce standard Spin-Loc tank: 0-3000 psi=30 mins
