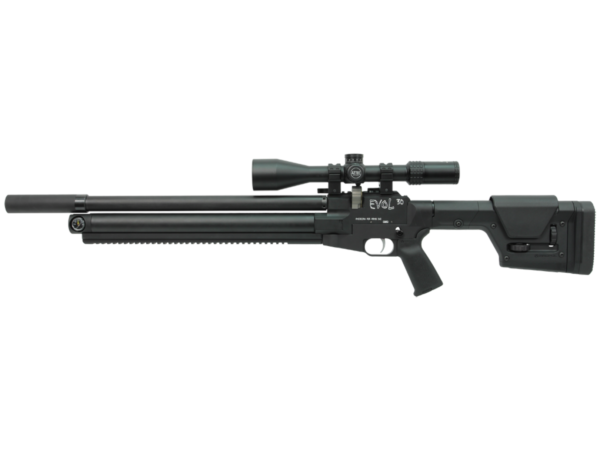

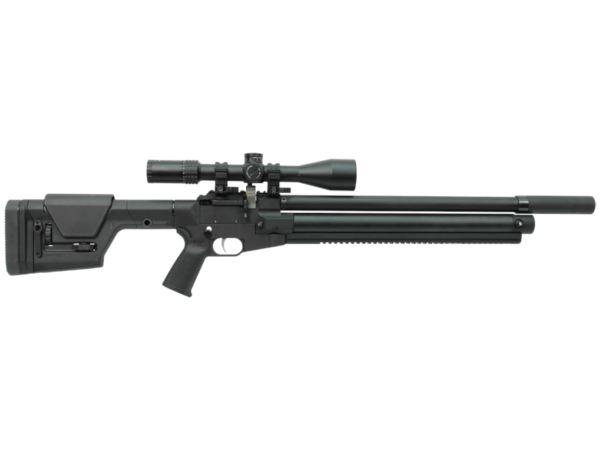

American Air Arms EVOL .30

$2,895.00

IN STOCK READY TO SHIP!

Available on backorder

Quantity

Secure encrypted online checkout

30-day returns - customer pays shipping. ("as is" Items excluded)

FREE shipping on orders $150 or more in the U.S. - click for details

Orders ship the same business day when placed before 8am EST

Delivery in 2 to 3 business days with tracking (backorders delayed)

credit cards and PayPal accepted

Take time to pay - available at checkout

***Scope and mounts not included***

American Air Arms is a small American manufacturer of Air rifles. This quality-first company builds a very limited number of rifles each year. All design, engineering, manufacturing and assembly takes place in their Southern California facility. Each rifle is a labor of love with dedication to perfection whether on display, the bench, or in the field. The EVOL 30 packs full performance into a clean and compact platform.

EVOL rifles are made to withstand the most demanding field applications. The EVOL upper and lower chassis is made from the highest grade aluminum. The rifle’s light weight is made possible by the titanium air cylinder which gives a larger air volume in a smaller space without sacrificing structural integrity and safety.

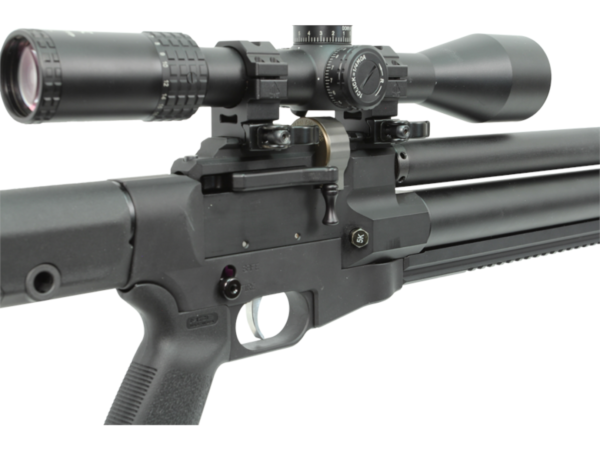

The bottom picatinny rail runs the entire length of the air cylinder to provide for a rigid platform to mount a bipod or other accessories. The EVOL action is a smooth to operate short stroke side lever and is built to withstand heavy use. The high level of accuracy, precision and repeatability is due in part to the tensioned barrel system.

Each EVOL barrel is selected to provide the best accuracy according to the rifle’s power and ammunition used. The barrel is then polished and threaded into a massive lug in the breech block. A chamber insert system is used to ensure the best transition into the rifling.

Smart features included are a forcing cone stripper to reduce turbulence and the report of the rifle.  Even the air supply gauge has been cleverly placed on the side of the air cylinder for quick reference. The shot to shot consistency is made possible from the in-house regulator and special valve and floating hammer design. A regulator gauge to display operating pressure is housed and protected by the lower chassis .

The design team for the EVOL has thoughtfully incorporated 50 MOA into the picatinny scope rail for the best zero of the scope without using the maximum elevation from scope turret adjustments.

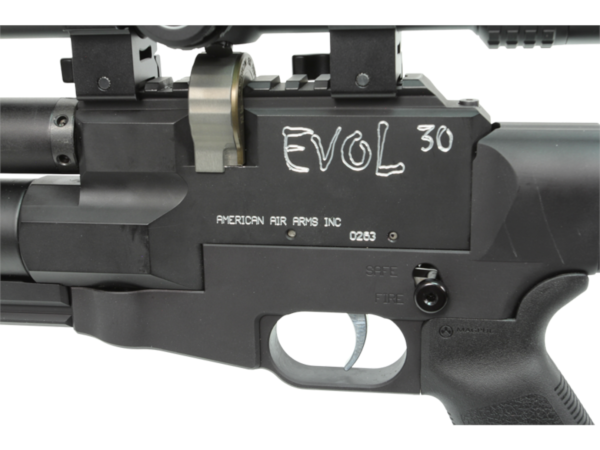

The trigger system is a piece of airgun jewelry with multiple adjustments clearly marked on the housing for ease of use. The trigger is factory set for a crisp release at 8 to 10 ounces with the ambidextrous safety ergonomically placed on both sides of the action.

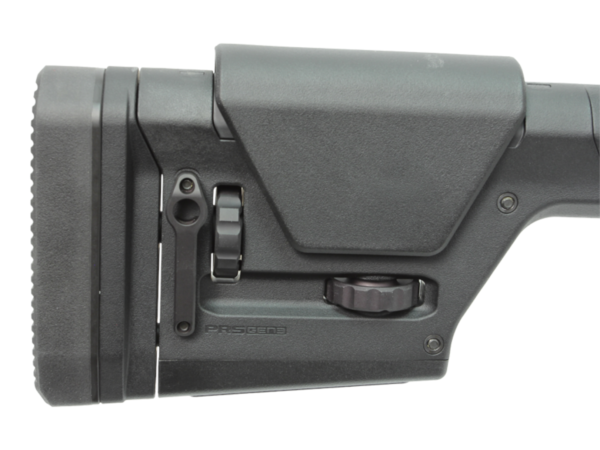

The EVOL .30 stock and grip are genuine Magpul and are fully AR15 compatible.



Caliber
.30
Barrel Length
18″
Overall Length
39″
Weight
7.2 lbs
Cylinder Volume
290cc
Energy
up to 90 ft-lbs
Powerplant
PCP
Capacity
9-shot
Scope Rail
Picatinny
